Introducing the Q-Sync Permanent Magnet Synchronous Motor

The Q-Sync commercial refrigeration fan motor is the greatest breakthrough in motor efficiency in over 50 years.



QM Power's groundbreaking technology has been recognized as a “High Impact Technology” by the Department of Energy and is quickly gaining adoption and support from utilities, grocers, manufacturers and other end users for its ability to save more than 30% over an ECM and up to 80% more than Shaded Pole Motors.

PRODUCTS

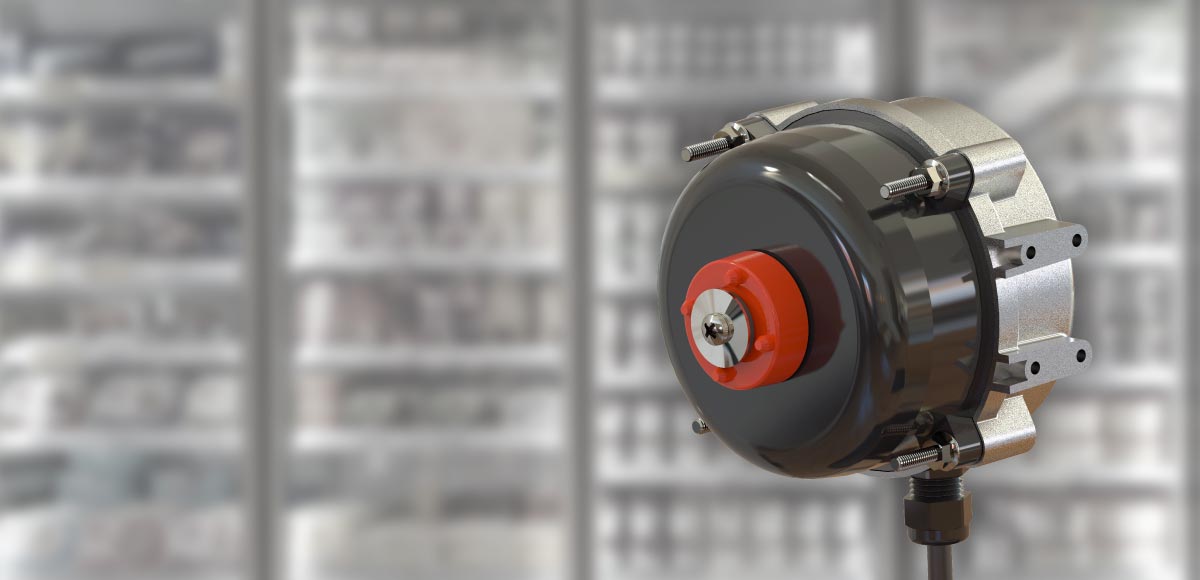

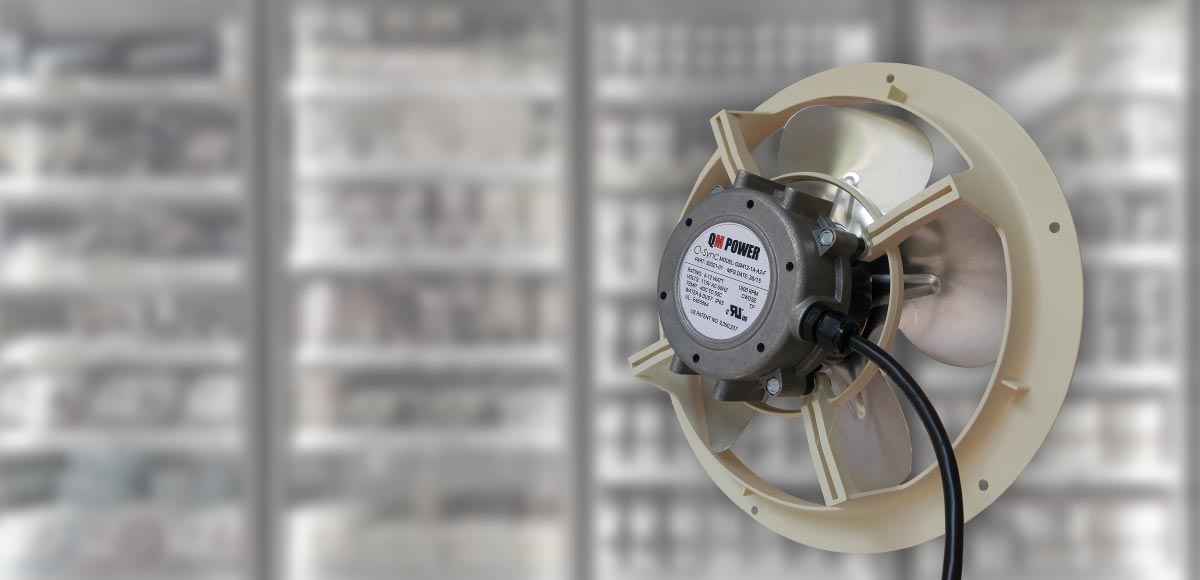

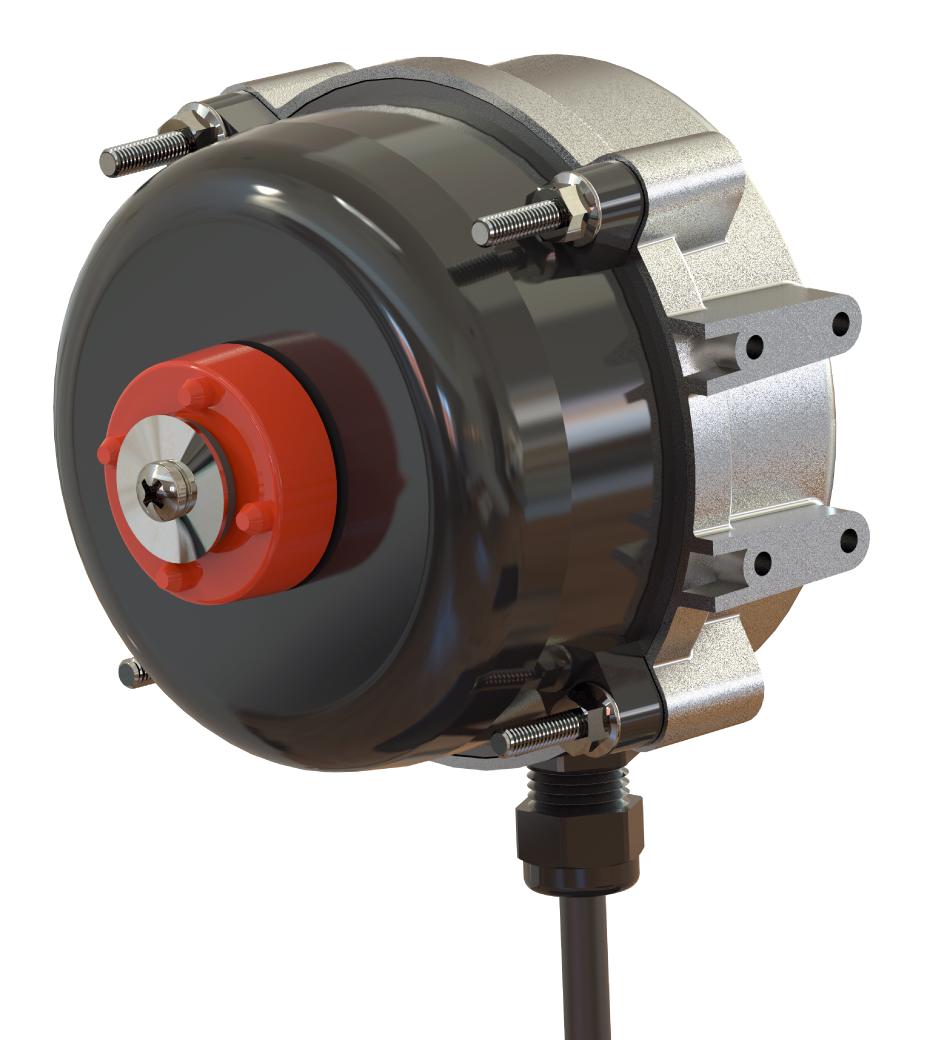

6-12 Watt Q-Sync (shown w/ assembly)

Motor Type: Synchronous - Electronic Start
Recommended For: 6-12 Watt applications
Rear & Front Mounting (Euro Style)
Cord: 14" - Low Temp. (-32° to 55°C)
Plug: Bare Wire or 2 Pin Plug
High performance fan blades and shrouds available
Evaporator and compressor fan motors



UL Approved
115 V/60Hz
1800 rpm, CW
IP 65



Buy Now

QM Power Q-Sync Product Sheet 6-12W

QM Power Q-Sync Product Sheet 6-12W

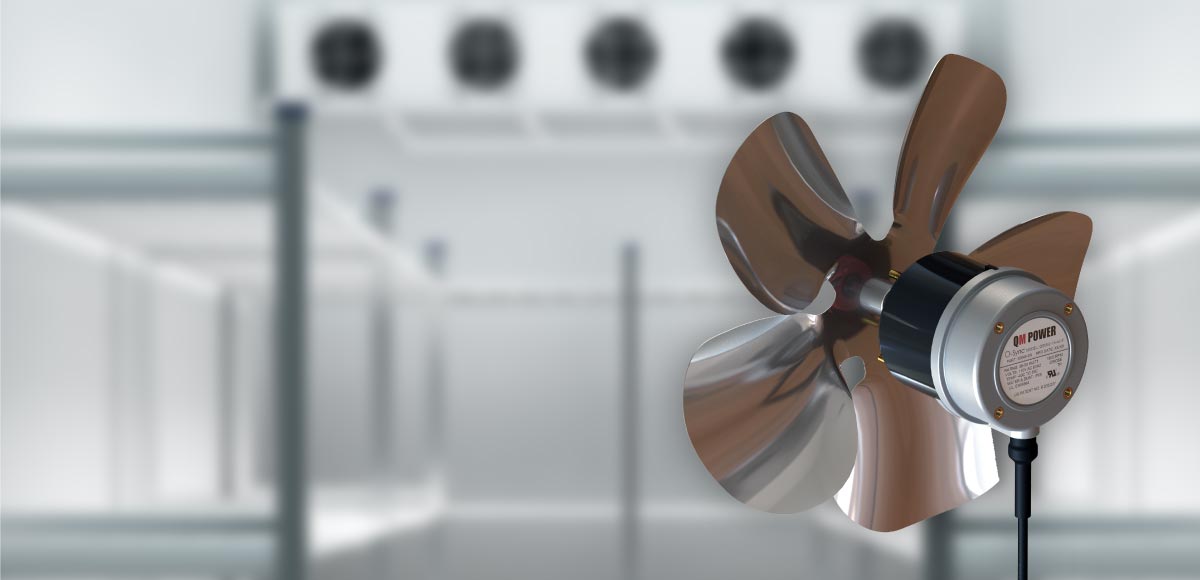

38-50 Watt Q-Sync

Motor Type: Synchronous - Electronic Start
Recommended For: 38-50 Watt applications
Rear & Front Mounting (Euro Style)
Cord: 14" - Low Temp. (-32° to 55°C)
Plug: Bare Wire or 2 Pin Plug
High performance fan blades available
Evaporator fan motors



UL Approved
115 V/60Hz
1800 rpm, CW
IP 65



Buy Now

QM Power Q-Sync Product Sheet 38-50W

QM Power Q-Sync Product Sheet 38-50W

Future Products

38-50W (check for availiability)

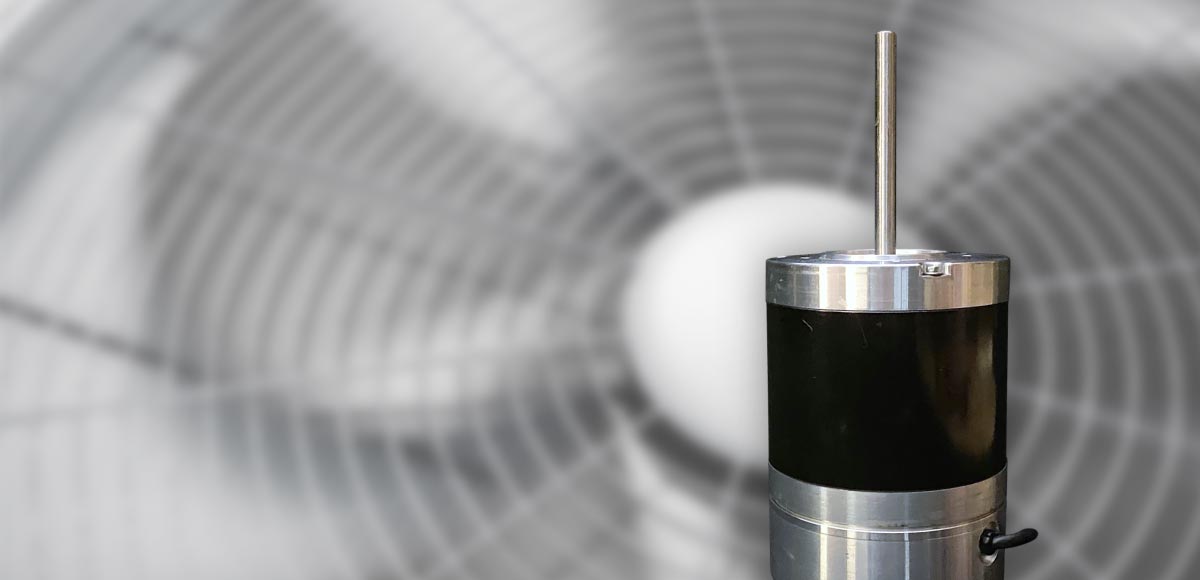

48 frame motors (1/10 , 1/5 , 1/4 , 1/3 , 1/2 , 3/4 and 1hp)
4-6W C-frame
Smart Motors

Click below to learn more about our newest products



New Products
